Application & Features:

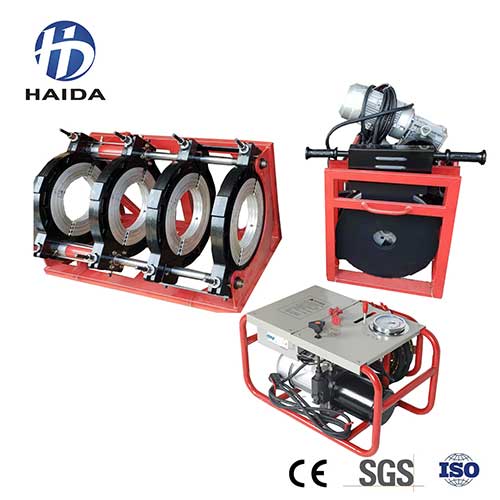

1.Consist of Rack, Milling Cutter, Heating Plate, Hydraulic Station, Control Box, Basket
2.Working Environment must be Between -40~45ºC
3.Pesssure Adjustable Range:0-10 Mpa
4.Max. Temperature of Heating Plate:270 ºC
5.Suitable for PE,PPR,PB,PVDF
Product Number:HD-YY400 | Including: Rack, Milling Cutter, Heating Plate, Hydraulic Station, Control Box | ||||
Welding Range(mm) | 255、280、315、355、400 | ||||
Packing Size(cm) | Wooden Box (1):120*81*85cm, (2):94*59*102cm, (3):74*51*48cm | ||||
Total Volume | 1.2m³ | Net Weight | 330KG | Gross Weight | 350KG |
Component Name | Rack | Heating Plate | Milling Cutter | Control Box | Hydraulic Station |
尺寸 Size(cm) | 120*81*85 | 94*59*102 | 74*51*48 | 55*32*62 | 58*47*47 |
Weight | 180KG | 34KG | 55KG | 18KG | 43KG |
Total Power | 7.9kw/380V | ||||
