Application & Features:

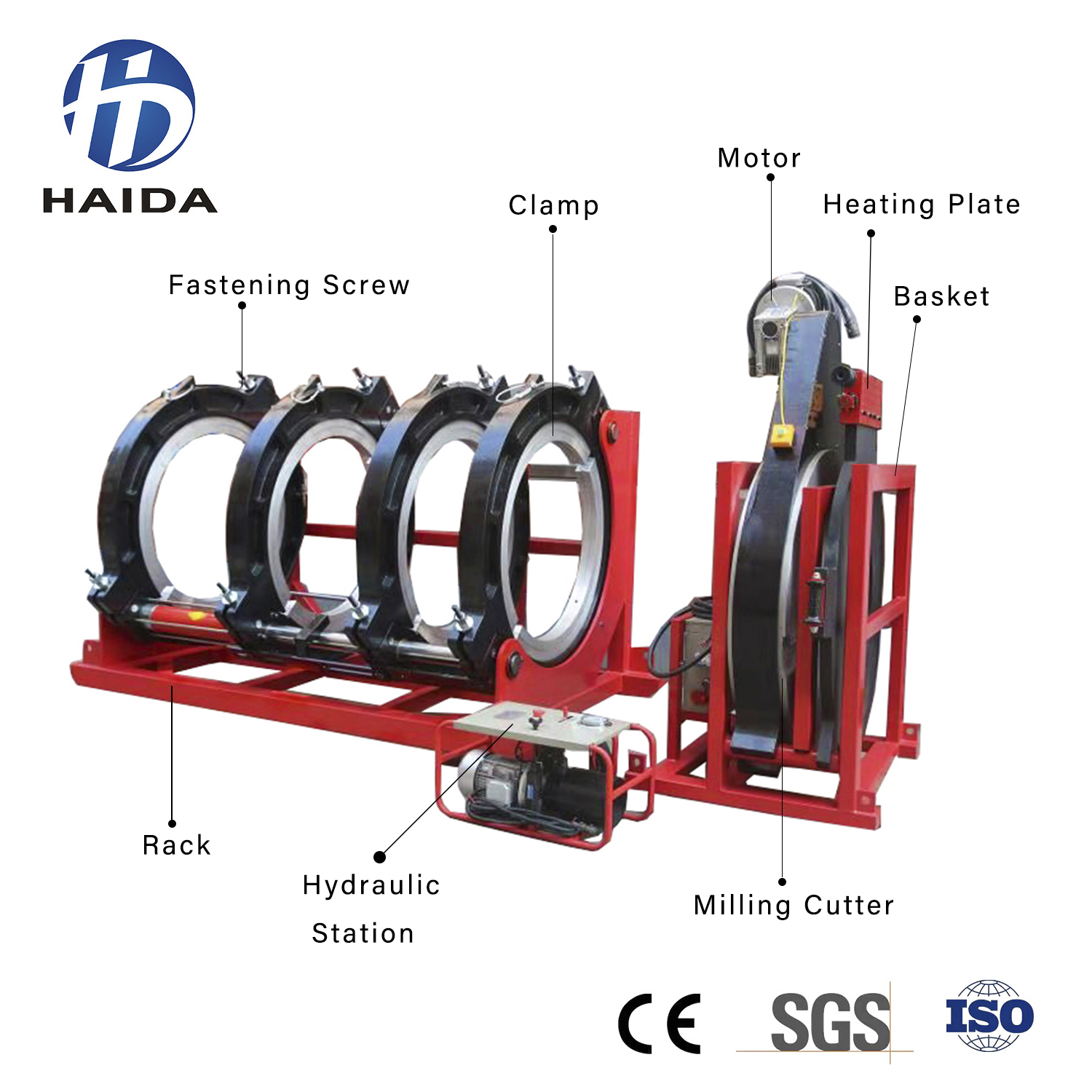

1.Consist of Rack, Milling Cutter, Heating Plate, Hydraulic Station, Control Box, Basket
2.Working Environment must be Between -40~45ºC
3.Pesssure Adjustable Range:0-16 Mpa
4.Max. Temperature of Heating Plate:270 ºC
5.Suitable for PE,PPR,PB,PVDF
Product Number:HD-YY1000 | Including: Rack, Milling Cutter, Heat Plate, Hydraulic Station, Control Box, Basket (Electric Crane and Hoist is Optional) | |||||
Welding Range(mm) | 800、900、1000 | |||||
Packing Size(cm) | Wooden Box (1):88*52*56cm, (2):263*177*190cm,(3):139*105*205cm | |||||
Total Volume | 11.6m³ | Net Weight | 1876KG | Gross Weight | 2100KG | |
Component Name | Rack | Heating Plate | Milling Cutter | Basket | Control Box | Hydraulic Station |
Size(cm) | 200*160*160 | 122*10*135 | 110*34*170 | 117*76*99 | 38*20*43 | 74*50*45 |
Weight | 1300KG | 84KG | 320KG | 110KG | 10KG | 52KG |
Total Power | 22.4kw/380V | |||||
