Product Details

HD-YY2000 HYDRAULIC BUTT FUSION WELDING MACHINE

Product Description

Application & Features:


1.Consist of Rack, Milling Cutter, Heating Plate, Hydraulic Station, Control Box, Basket


2.Working Environment must be Between -40~45ºC


3.Pesssure Adjustable Range:0-16 Mpa


4.Max. Temperature of Heating Plate:270 ºC


5.Suitable for PE,PPR,PB,PVDF


Product Number:HD-YY2000

Including: Rack, Milling Cutter, Heat Plate, Hydraulic Station, Control Box, Basket

(Electric Crane and Hoist is Optional)

Welding Range(mm)

1200、1400、1600、2000

Packing Size(cm)

Wooden Box (1):88*63*65cm, (2):300*1205*190cm,(3):170*115*230cm

Total Volume

11.6m³

Net Weight

19500KG

Gross Weight

20570KG

Component Name

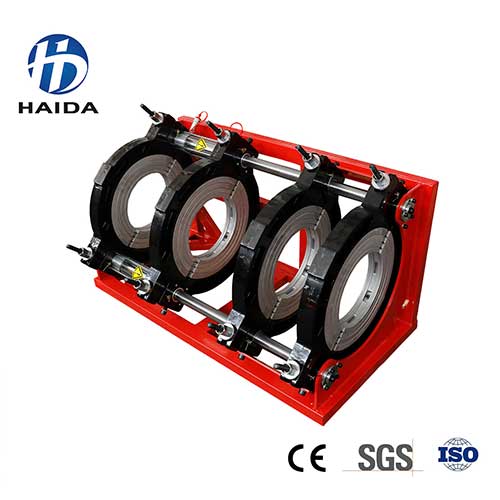

Rack

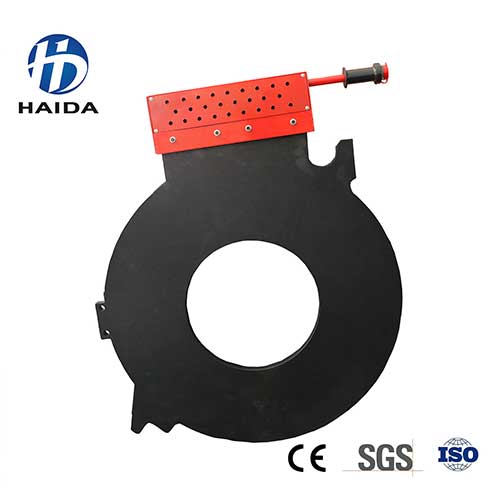

Heating Plate

Milling Cutter

Basket

Control Box

Hydraulic Station

Total Power

95kw/380V
